Robot assisted gait training: down with setup times!

Locomotion therapy is a key element of post stroke mobility rehabilitation. Intensive task-based gait training using an electromechanical gait trainer, such as the THERA-Trainer lyra, is at the forefront for patients unable to walk in the subacute phase. Electromechanical-assisted gait therapy has developed steadily over the past 20 years and is well documented.



Despite a largely similar structure and functional principle to the gait trainer systems available on the market, they are not directly comparable. For example, the technical complexity and the underlying operating concept determine the initial effort required for setup and transfer. Here, the use of modern gait robots is often both a curse and a blessing: against the backdrop of scarce resources and an average therapy time of around 30 minutes per gait therapy session, preparation and follow-up should be as fast as possible so that patients can practise as many steps as possible. That is, after all, the main objective. According to current recommendations, patients who are unable to walk should complete 800 to 1.000 steps per day. At least 20 minutes of active training time should be available for this purpose.



The THERA-Trainer lyra comes with a very simple operating concept and short setup times, in line with its basic principle of being simple, effective and affordable. The aim of this task was to quantify this product promise as part of post-market clinical follow-up surveillance.


Methodology and approach

In order to measure the mean setup times before and after a gait trainer session, the set-up times of a total of 33 sessions were recorded and evaluated in several neurological rehabilitation facilities in Germany in 2017.

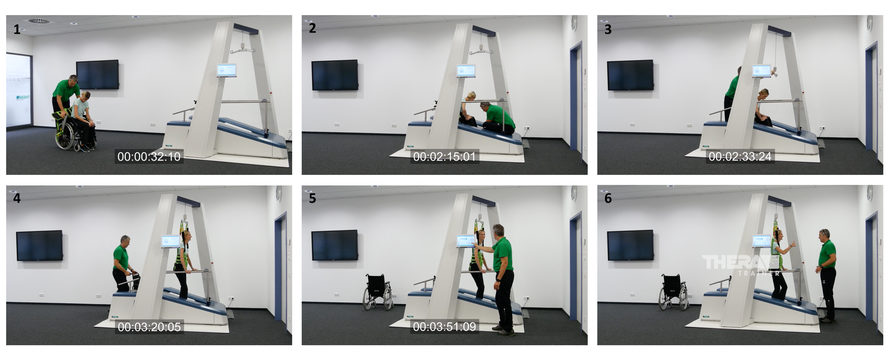

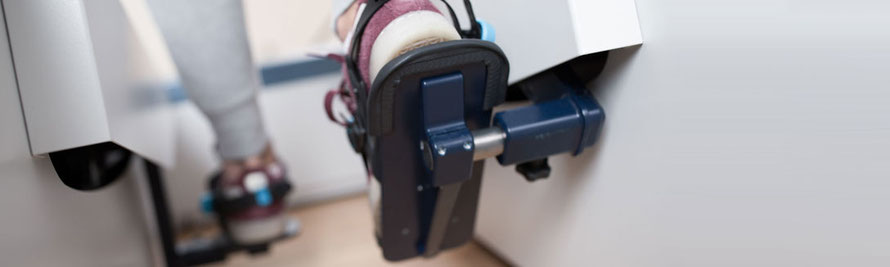

The setup procedures were firstly standardised: 1) set up the safety belt; 2) place the patient in the lift system; 3) secure the feet in the foot plates; 4) lift the patient; 5) set body weight support; 6) set step length.



Depending on the patient’s degree of mobility, it was possible to set up the safety belt either for sitting or standing. This decision was made by the physiotherapist. Time recording always started at safety belt setup and ended at start of training.


After training, the patient was transferred from the gait trainer back to the wheelchair (the process described above in reverse). Here, time recording started when training stopped and ended when the patient was out of the safety belt.



Functional Ambulation Categories (FAC) were used to determine the patient’s walking ability. The FACs are six different categories (0 to 5) that differentiate how much assistance a patient needs for walking, irrespective of the aids used. Category 0 refers to a patient who is completely unable to walk and category 5 refers to a patient who can independently handle all paths in the clinic, including stairs.



In addition to the FACs, the starting position (SP) was also documented for the subgroup analysis of the safety belt setup (subgroup: SP Sitting and SP Standing).



Patients were recruited on the basis of the severity of mobility impairment and independently of the etiology of the underlying disease.


The inclusion criteria required patients to have an underlying neurological disease and be aged 18 to 79 years. Patients had to be able to sit with their feet on the ground but not be able to walk independently: either not at all (FAC-0), with the help of two physiotherapists (FAC-1) or with the help of one physiotherapist (FAC-2). In addition, all patients had to have previously completed at least three training sessions.


The exclusion criteria were: acute confusion, acute medical need for treatment, subjective indication of circulatory overload in the assisted standing test, activated arthrosis of the large leg joints, severe spasticity of the large leg joints with an extension deficit for knee and hip > 30°, open areas in the area of padding or belt supports.


Every effort was made to include all eligible patients in the study period. The inclusion of at least 30 patients was planned – at least 10 patients in each subgroup of FAC 0-2.




All therapists included in the study had to be familiar with the settings and setup procedures, and be able to demonstrate routines in handling the gait trainer.


During measurements, only one therapist was allowed to assist the patient. A maximum of three patient run-throughs were documented per therapist.



A total of 33 patients were recruited during the study period, 11 of whom were assigned to subgroup “FAC 0”, 10 to subgroup “FAC 1” and 12 to subgroup “FAC 2”. 21 of the 33 patients had the safety belt set up in the sitting position. For the remaining 12 patients, the therapist was able to set up the safety belt in the standing position.

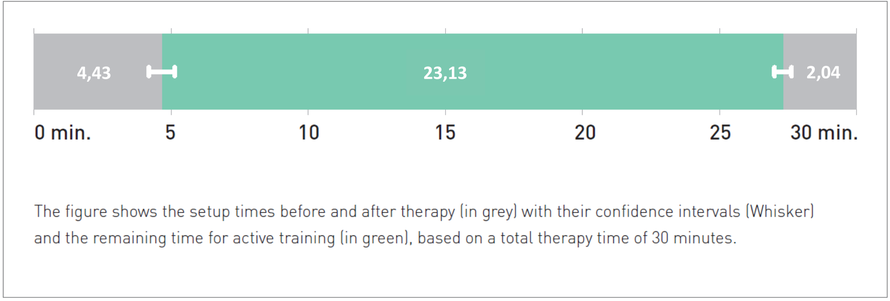

The mean setup time before therapy was 4.43 minutes (CI 95 % 4.20 – 5.07 min) and after therapy 2.04 minutes (CI 95 % 1.51 – 2.17 min).


"In the case of an average gait training session of 30 minutes using the lyra, approximately 23 minutes are left for active training in the device."




The aim of the study was to collect average setup times using the THERA-Trainer lyra as part of locomotion therapy. The results of the study show that the time required for set up and transfer is about 7 minutes on average. Based on the assumption that a gait trainer session takes an average of 30 minutes, this leaves about 23 minutes for active training in the device.


The setup time, particularly before therapy, reduces as the patient’s mobility score increases. The starting position when setting up the safety belt appears to have a particularly big impact here. Setting up the belt in the standing position reduces the setup time by about one third. This coincides with the results of qualitative surveys. Therapists confirm that setting up the safety belt in the standing position is simpler and clearly saves time.


Implications for clinical practice

Depending on their motor skills, patients should be actively involved in preparing and following up electromechanical gait therapy. This will create the opportunity to reduce setup times in order to generate more time for active training in the device. The safety belt should be set up in the standing position, wherever possible, because this can save the most time. Waiting times when directly changing from one patient to the next can be compensated, for example, by using several belt systems and an overlapping schedule.
